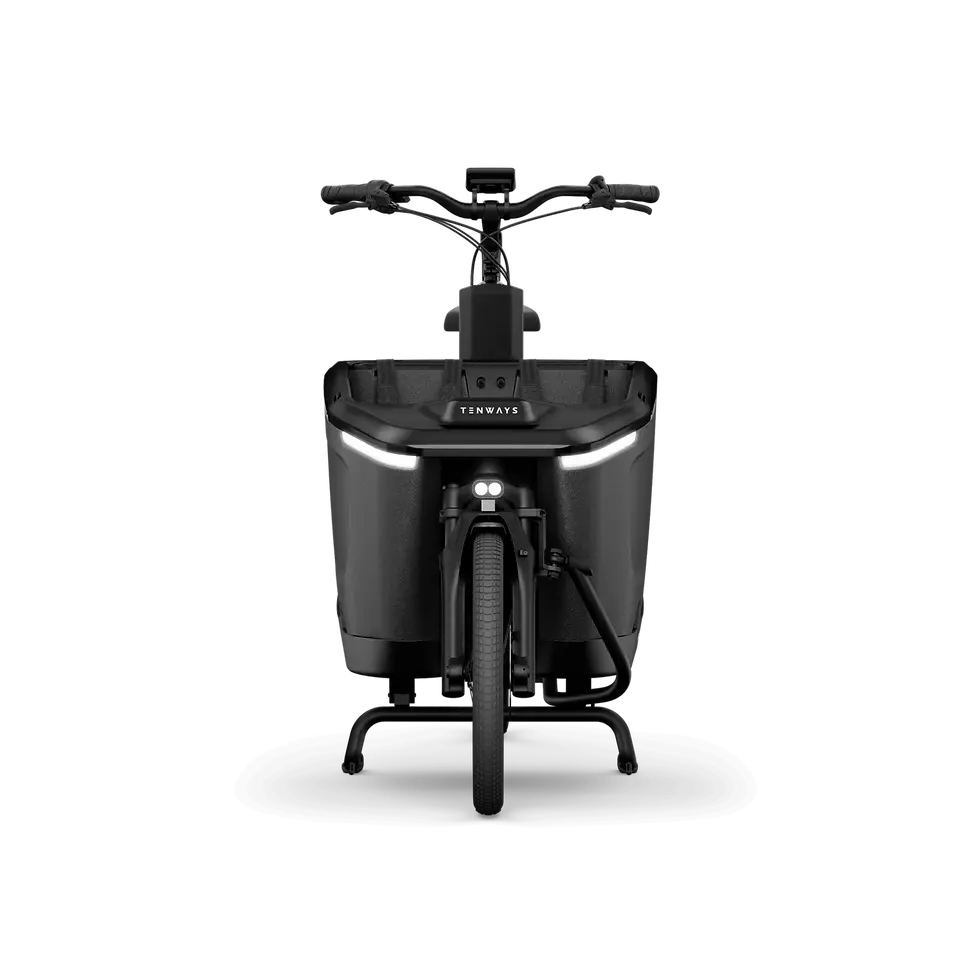

With an extra-large cargo box and a host of ergonomic features, it is the best travel companion to carry your little ones through life's little adventures.
- Extra-large Cargo Box
- EV-style Sidelights
- 960 Wh Portable Battery
- Gates CDX Carbon Belt
- Enviolo Stepless Shifting Hub
- Mid-drive Motor
- Versatile Cargo Functions
- Comfortable Set-up
One size for riders of 160 ~ 195 cm (5'5'' ~ 6'5'')
Shipping starts in 3 working days from the Netherlands.
Available for DE, NL, BE, and LU only.
Electronics
Motor
Bafang M600 Cargo (250W Power, 100 Nm Max. Torque)
Sensor
Integrated Torque Sensor for the Mid-drive Motor
Controller
Integrated Controller of the Mid-drive Motor
Display
TFT LCD Color Display
Battery
960Wh (48V, 20Ah) Lithium-ion Battery with LG Cells
Lights
StVZO-compliant
Performance
Top Speed
25 km/h*
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
Range
Up to 90 km*
*Results of single battery charge range tests with an empty cargo box. Actual performance will vary depending on load, PAS levels, temperature, road conditions, rider's weight, etc.
Climbing Ability
Suitable for Climbing Slopes*
*The actual performance would depend on the rider's physical strength.
Component
Frame
6061 Aluminium Frame
Crankset
Aluminium Alloy Crankset
Wheels
6061 Aluminium Rims
Rear Derailleur
Enviolo Stepless Shifting Hub
Drivetrain
Gates CDX Carbon Belt
Front Fork
SR SUNTOUR Suspension Front Fork
Tires
SCHWALBE 20''*2.15/26''*2.15 Puncture-proof Tires
Brake
Tektro Four-piston Hydraulic Disc Brakes
Bottom Bracket
Fully-concealed Bottom Bracket
Saddle
Selle Royal Saddle
Weight*
Net weight: 56 kg (excluding all accessories)
Full weight: 58 kg (including all accessories)
Permissible Max. Weight: 250 kg*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
*Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.
Geometry
| One Size (mm) | SYMBOL | |
| Effective top tube | A | 653.5 |
| Seat tube length | B | 485 |
| Head tube | C | 85 |
| Steering angle | D | 64.4 |
| Seat tube angle | E | 69.1 |
| Chainstay | F | 436 |
| Wheelbase | G | 2030 |
| Standover | H | 443 |
