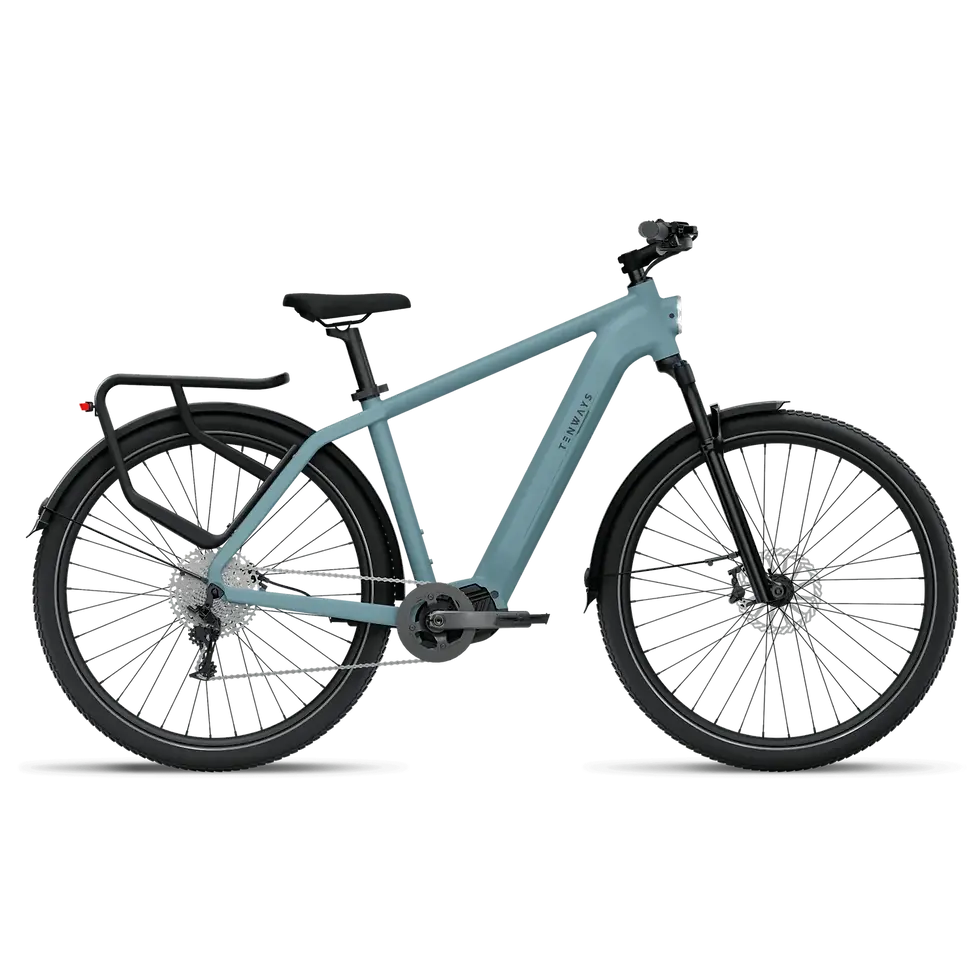

A powerful all-rounder for both urban commuting and off-road adventures.80 Nm Mid-drive MotorIntegrated Torque SensorUp to 100 km Range504 Wh Portable BatteryShimano 10-speed DrivetrainSR SUNTOUR Lockout ForkHydraulic Disc BrakesElectronics
Motor
Bafang M410 Mid-drive Motor (250W Power, 80 Nm Max. Torque)
Sensor
Integrated Torque Sensor of the Mid-drive Motor
Controller
Integrated Controller of the Mid-drive Motor
Display
TFT LCD Color Display
Battery
36V, 14Ah Lithium-ion Battery with LG Cells
Lights
StVZO-compliant
Performance
Top Speed
25 km/h*
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
Range
Up to 100 km*
*Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
Climbing Ability
Suitable for Climbing Slopes*
*The actual performance would depend on the rider's physical strength.
Component
Frame
6061 Aluminium Frame
Crankset
Aluminium Alloy Crankset
Wheels
6061 Aluminium Rims
Front Fork
SR SUNTOUR Lockout Fork
Tires
CST Puncture-proof 29" Tires
Brake
Hydraulic Disc Brakes
Drivetrain
Shimano 10-speed Drivetrain
Bottom Bracket
Integrated with the Bafang M410 Mid-drive Motor
Weight*
Net weight: 27 kg (excluding all accessories)
Full weight: 29 kg (including all accessories)
Permissible Max. Weight: 150 kg
Rear Carrier Max. Load: 25 kg*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
*Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.
Geometry
SIZE (mm) | SYMBOL | M | L | XL |
Effective top tube | A | 610 | 625 | 640 |
Seat tube length | B | 470 | 500 | 530 |
Head tube | C | 145 | 160 | 170 |
Steering angle | D | 68.5 | 70 | 70 |
Seat tube angle | E | 74 | 73 | 73 |
Chainstay | F | 460 | 460 | 460 |
Wheelbase | G | 1161 | 1146.3 | 1161.9 |
Standover | H | 839 | 847 | 869 |
